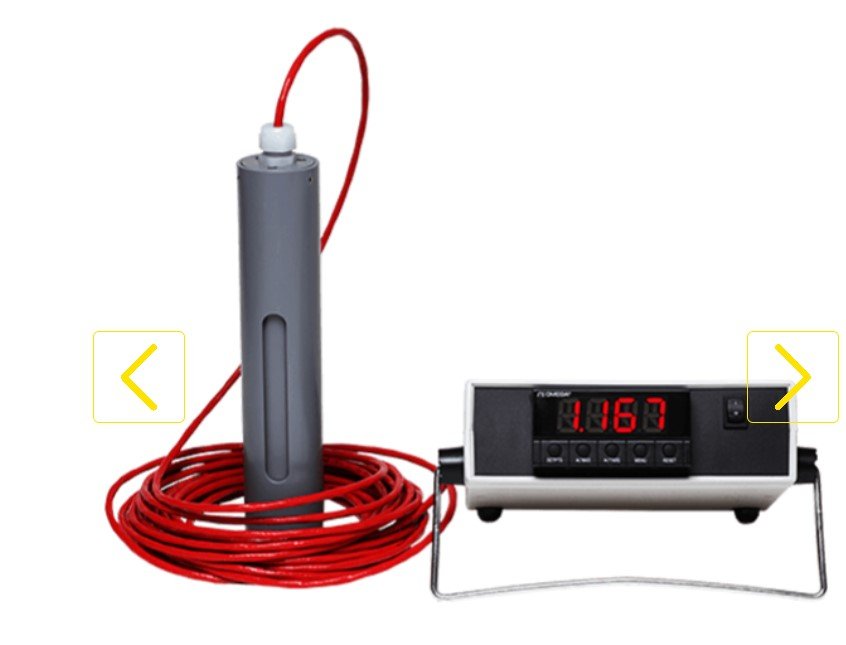

The SG-100M Electronic Battery Hydrometer/specific gravity measurement meter/ liquid density monitor can replace ordinary glass bulb and optical refractometer hydrometers that are limited in range, utility, and functionality. It has an in-tank, drop-hang submersible density meter that monitors and records specific gravity/liquid/slurry density during a mixing, blending, or plating operation.
The SG-100M Electronic Battery Hydrometer/specific gravity measurement tool offers many user-customized options that allow the instrument to fit your exact density measuring needs. The density measurement probe can be purchased independently or for integration into an existing PLC (Programmable Logic Controller). An optional 4 -20 mA analog output board for automatic process control is available. Cabling is either Teflon or PVC depending on the measuring sample.
Key Features
- Measures in liquids or slurries
- Remote readout at desired distance from probe
- Readout can be chosen in preferred engineering units
- Battery or In-tank operation depending on application
- Determines concentration mix (by volume or mass) of the sample blend
- Large sample and operating temperature ranges (up to 106°C / 220°F)
- Easy to disassemble for cleaning
- Customization available based on user needs
Specifications
Measurement Range(1) Density: ±0.400 g/cm3 (within the range of
0.550 lower limit to 2.000 g/cm3 upper limit)
Sample Temperature: 20 – 106 °C (40 – 220 °F)Pressure Range 0 – 5 atm (operable in vacuum) Accuracy ±0.005 g/cm3 Resolution ±0.001 g/cm3 Repeatability ±0.004 g/cm3 Data Transfer Analog Voltage Data Logger (optional) 4 – 20 mA Operating Environment -20 – 106 °C (-40 – 220 °F) Power Requirements Control Module: 120/240 VAC(3)
Probe: 0 – 5 VDCDimensions Probe Length x Diameter: 280 x 51 mm (11 x 2 in) Weight Probe: 2.3 kg (5 lbs) Cable Length Standard: PVC: 3 – 30.5 m (10 – 100 ft)
Optional: Teflon cable for caustic solutions
-
-
